Arena X

6-1/2″ (165mm) 3-way active car component speaker system

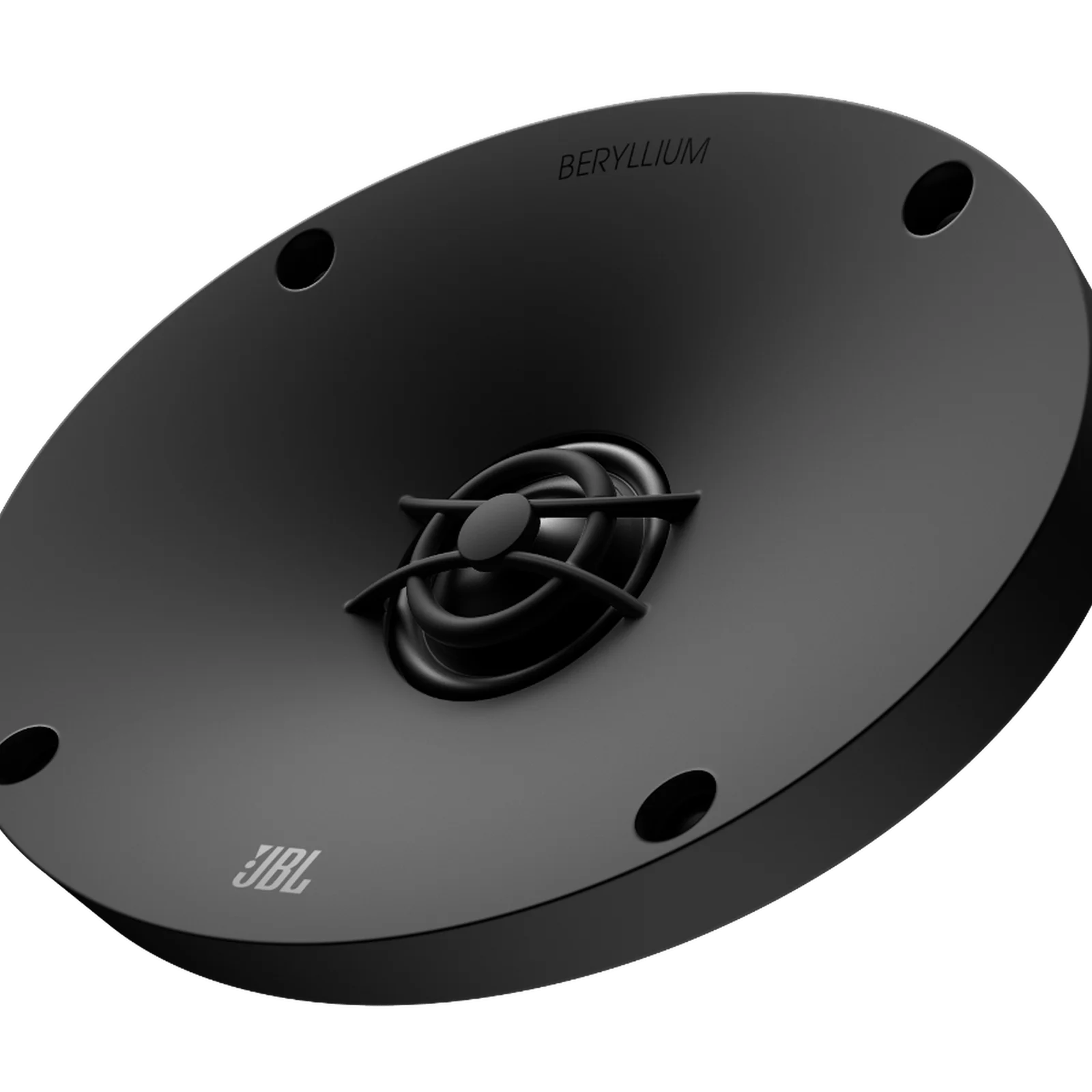

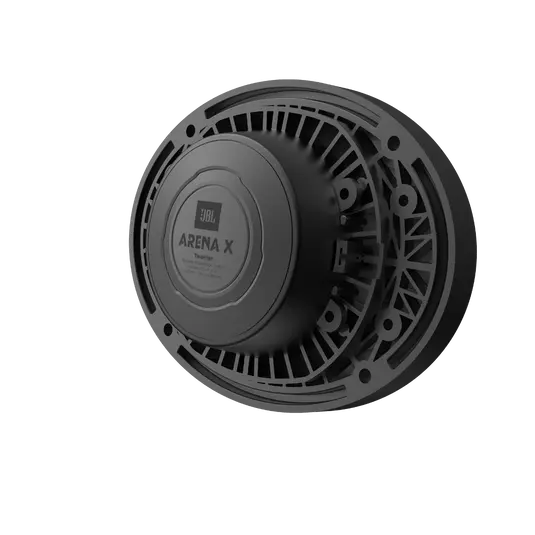

1″ Beryllium dome tweeter with 6th-generation ceramic-coated acoustic lens waveguide

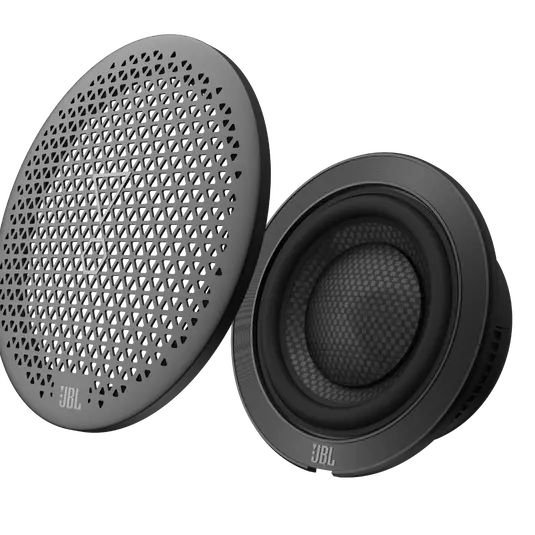

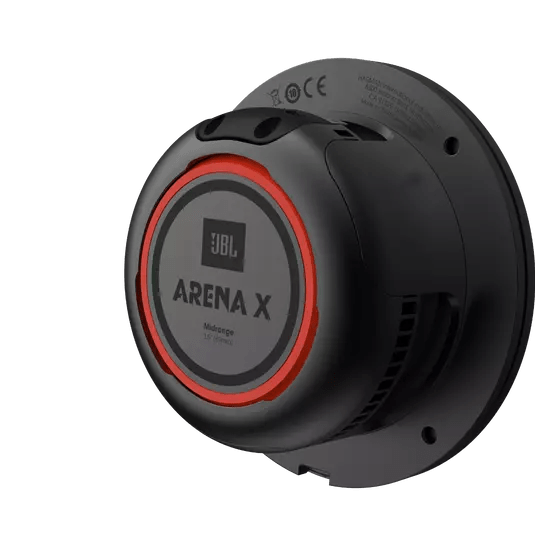

3.5″ Carbon fiber cone midrange with cast frames

6.5″ Carbon fiber cone woofer with cast frames

Frequency Response (-6dB)

20Hz – 40kHz

Power Handling

100Wrms,200W peak

Crossover Frequencies

250Hz; 3.5kHz

Nominal Impedance

4 ohms

Sensitivity

90dB (2.83V @1M)

Woofer mounting depth

2.83 in./72 mm

Midrange mouting depth

1.47 in./37.5 mm

Tweeter flush mouting depth:1.52 in./38.5 mm
